(Not Shown Also Available)
Electronic Lock - A keyless electronic lock system is available for all door configurations. Simple, reliable and easy to use. Runs on two AA batteries.

Lock System - Standard key locking system is factory installed. Electronic keyless (battery operated) entry system is also available.

False Panel Backing - Factory installed back panel prevents door jams, bin obstructions or excess product jams.

Extruded Aluminum Rails - Aluminum corner rails combined with powder coated steel sides provide maximum cell strength

Handles - Dual anodized aluminum handles with ergonomic design allows for ease of movement and steering during transport.

Inside Panels - Wing nuts allow for easy removal of inner panels for cleaning if desired.

Casters - 5” premium sealed casters, two brakes on the front of the cart, two swivel on the back of the cart provide maximum mobility during transportation and in confined spaces.

Corner Bumpers - Extra strength non-marking corner bumpers protect the cell and facility walls during storage and transportation.

Doors - Factory installed louvered doors have special cut-out allowing for easy removal for cleaning. Custom tempered glass doors with anodized aluminum frame or solid laminate doors are available.

Glass and Roll Down Door - Standard roll down door is made from molded plastic. It is very durable and easily removed for cleaning. Anodized aluminum framed doors have tempered glass for safety and easy identification of stored products.

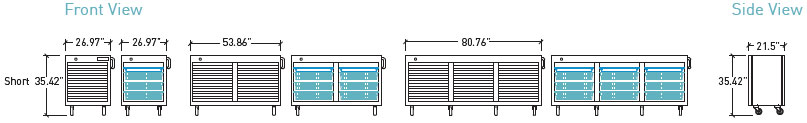

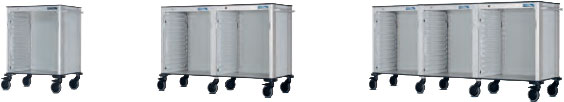

36” B Cells

Single | MC-36B/_/4BSK

Double | MC-36BB/_/4BSK

Triple | MC-36BBB/_/4BSK-C

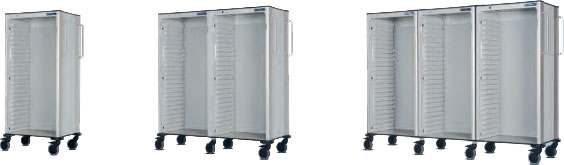

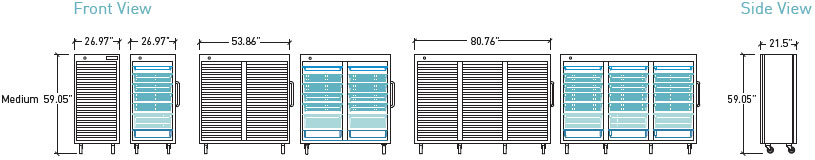

59” B Cells

Single | MC-59B/_/7BSK

Double | MC-59BB/_/7BSK-C59

Triple | MC-59BBB/_/7BSK-C

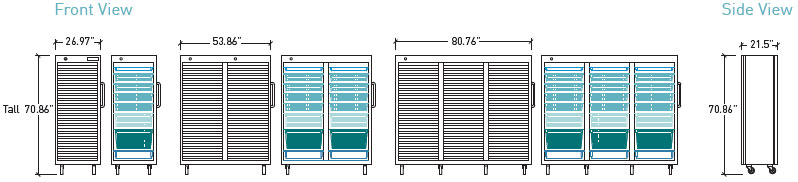

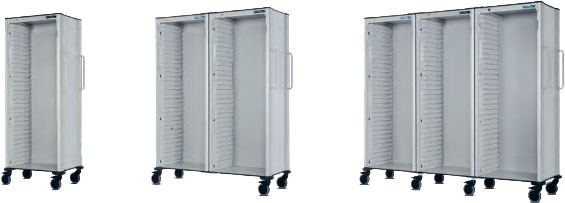

71” B Cells

Single | MC-71B/_/8BSK-C71”

Double | MC-71BB/_/8BSK-C71

Triple | MC-71BBB/_/8BSK-C

Part Number Codes:

Part Number Examples:

Roll Down Door = ROLL

MC-36B/ROLL/4BSK-C

Glass Door = GLASS

MC-36B/GLASS/4BSK-C

Open = NO

MC-36B/NO/4BSK-C

36” B Cells

Single | MC-36B/_/4BSK-G

Double | MC-36BB/_/4BSK-G

Triple | MC-36BBB/_/4BSK-G

59” B Cells

Single | MC-59B/_/7BSK-G

Double | MC-59BB/_/7BSK-G

Triple | MC-59BBB/_/7BSK-G

71” B Cells

Single | MC-71B/_/8BSK-G

Double | MC-71BB/_/8BSK-G

Triple | MC-71BBB/_/8BSK-G

Part Number Codes:

Part Number Examples:

Roll Down Door = ROLL

MC-36B/ROLL/4BSK-G

Glass Door = GLASS

MC-36B/GLASS/4BSK-G

Open = NO

MC-36B/NO/4BSK-G

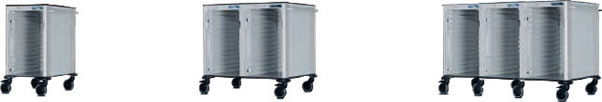

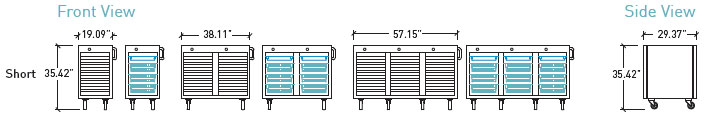

36” A Cells

Single | MC-36A/_/OPEN

Double | MC-36AA/_/OPEN

Triple | MC-36AAA/_/OPEN

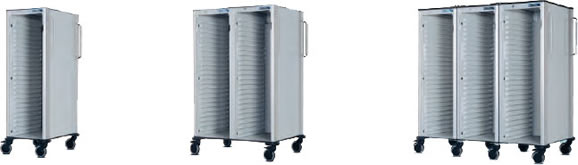

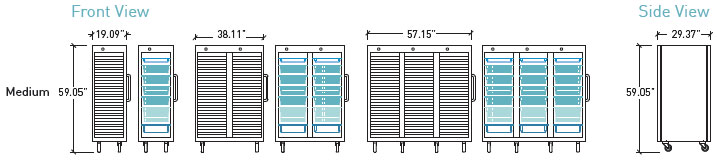

59” A Cells

Single | MC-59A/_/OPEN

Double | MC-59AA/_/OPEN

Triple | MC-59AAA/_/OPEN

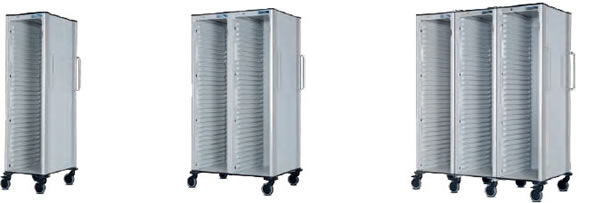

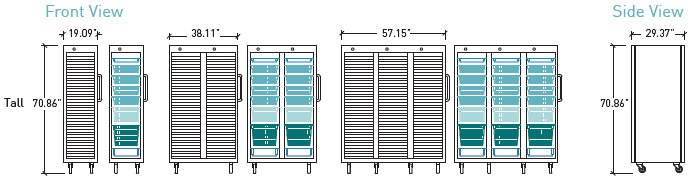

71” A Cells

Single | MC-71A/_/OPEN

Double | MC-71AA/_/OPEN

Triple | MC-71AAA/_/OPE

Part Number Codes:

Part Number Examples:

Roll Down Door = ROLL

MC-36A/ROLL/OPEN

Glass Door = GLASS

MC-36A/GLASS/OPEN

Open = NO

MC-36A/NO/OPEN

36” A Cells

Single | MC-36A/_/4BSK-C

Double | MC-36AA/_/4BSK-C

Triple | MC-36AAA/_/4BSK-C

59” A Cells

Single | MC-59A/_/7BSK-C

Double | MC-59AA/_/7BSK-C

Triple | MC-59AAA/_/7BSK-C

71” A Cells

Single | MC-71A/_/8BSK-C

Double | MC-71AA/_/8BSK-C

Triple | MC-71AAA/_/8BSK-C

Part Number Codes:

Part Number Examples:

Roll Down Door = ROLL

MC-36A/ROLL/4BSK-C

Glass Door = GLASS

MC-36A/GLASS/4BSK-C

Open = NO

MC-36A/NO/4BSK-C

36” A Cells

Single | MC-36A/_/4BSK-G

Double | MC-36AA/_/4BSK-G

Triple | MC-36AAA/_/4BSK-G

59” A Cells

Single | MC-59A/_/7BSK-G

Double | MC-59AA/_/7BSK-G

Triple | MC-59AAA/_/7BSK-G

71” A Cells

Single | MC-71A/_/8BSK-G

Double | MC-71AA/_/8BSK-G

Triple | MC-71AAA/_/8BSK-G

Part Number Codes:

Part Number Examples:

Roll Down Door = ROLL

MC-36A/ROLL/4BSK-G

Glass Door = GLASS

MC-36A/GLASS/4BSK-G

Open = NO

MC-36A/NO/4BSK-G

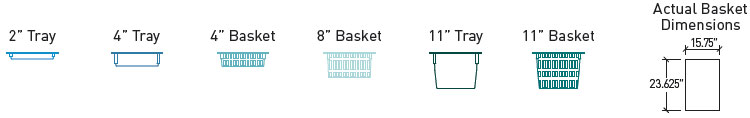

Basket Stop - BS

U’s - U

4” Tray Clear & Gray
- 4TC / 4T

11” Tray - 11T

T’s - T

Basket Inlay - LINER

4” Basket Clear & Gray
- 4BC / 4B

4” Dividers Clear & Gray Long
- 4DLC / 4DL
4” Dividers Clear & Gray Short
- 4DSC / 4DS

Labels - LBL

1” Tray - 1BC

8” Basket Clear & Gray
- 8BC / 8B

8” Dividers Clear & Gray Long
- 8DLC / 8DL
8” Dividers Clear & Gray Short
- 8DSC / 8DS

2” Tray Clear & Gray
- 2TC / 2T

2” Dividers Clear & Gray Long - 2DLC / 2DL
2” Dividers Clear & Gray Short - 2DSC / 2DS

11” Basket Clear & Gray
- 11BC / 11B

11” Dividers Clear & Gray Long
- 11DLC / 11DL
11” Dividers Clear & Gray Short
- 11DSC / 11DS

2” Basket Wire - 2WB

2” Dividers Wire Long & Short
- 2DLW / 2DLS

16”x24” Flat Shelf Solid A
(Fits A-Units) - FSM-A
24”x16” Flat Shelf Solid B
(Fits B-Units) - FSM-B

Flat Shelf Divider A
(Fits A-Units) - DIV197
Flat Shelf Divider B
(Fits B-Units) - DIV127

4” Basket Wire - 4WB

4” Dividers Wire Long & Short
- 4DLW / 4DLS

Flat Shelf Volkren A
(Fits A-Units) - VOLKRENA
Flat Shelf Volkren B
(Fits B-Units) - VOLKRENB

Flat Wire Shelf A
(Fits A-Units) - WSA
Flat Wire Shelf B
(Fits B-Units) - WSB

8” Basket Wire - 8WB

8” Dividers Wire Long & Short
- 8DLW / 8DLS

Cath Forward A
(Fits A-Units) - MS-CATHA/FF

Cath Forward B
(Fits B-Units) - MS-CATHB/FF

11” Basket Wire - 11WB

11” Dividers Wire Long & Short
- 11DLW / 11DLS

Cath Sideways A
(Fits A-Units) - MS-CATHA/SF

Cath Sideways B
(Fits B-Units) - MS-CATHB/SF
